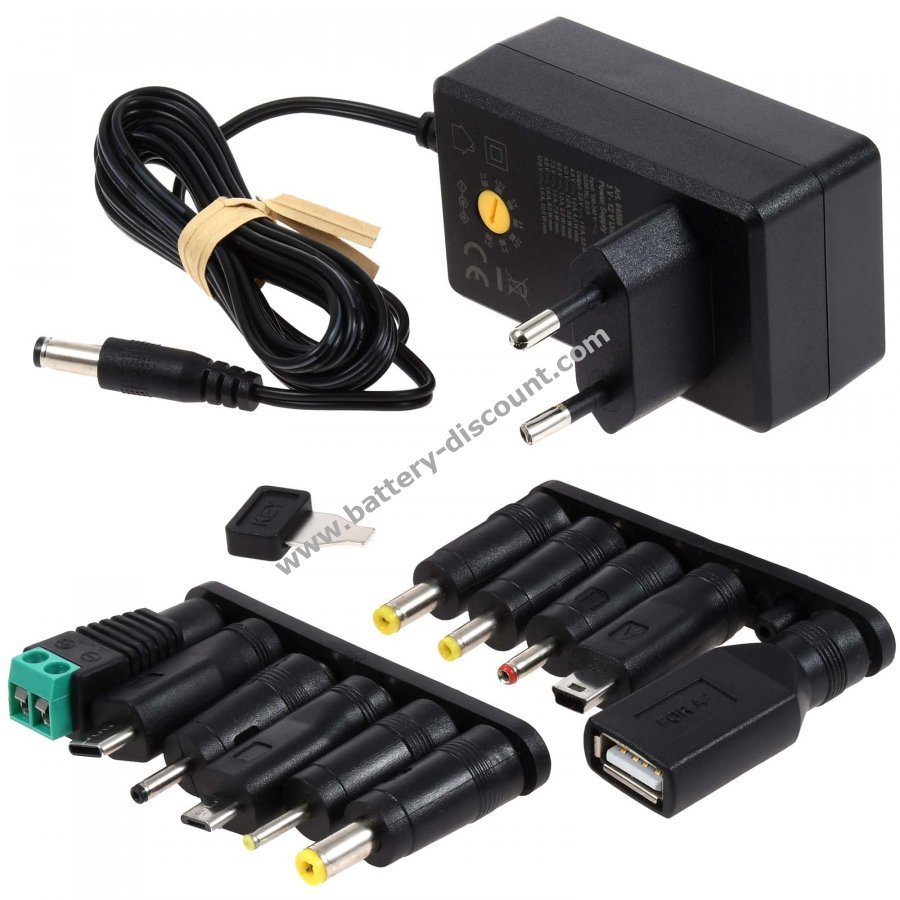

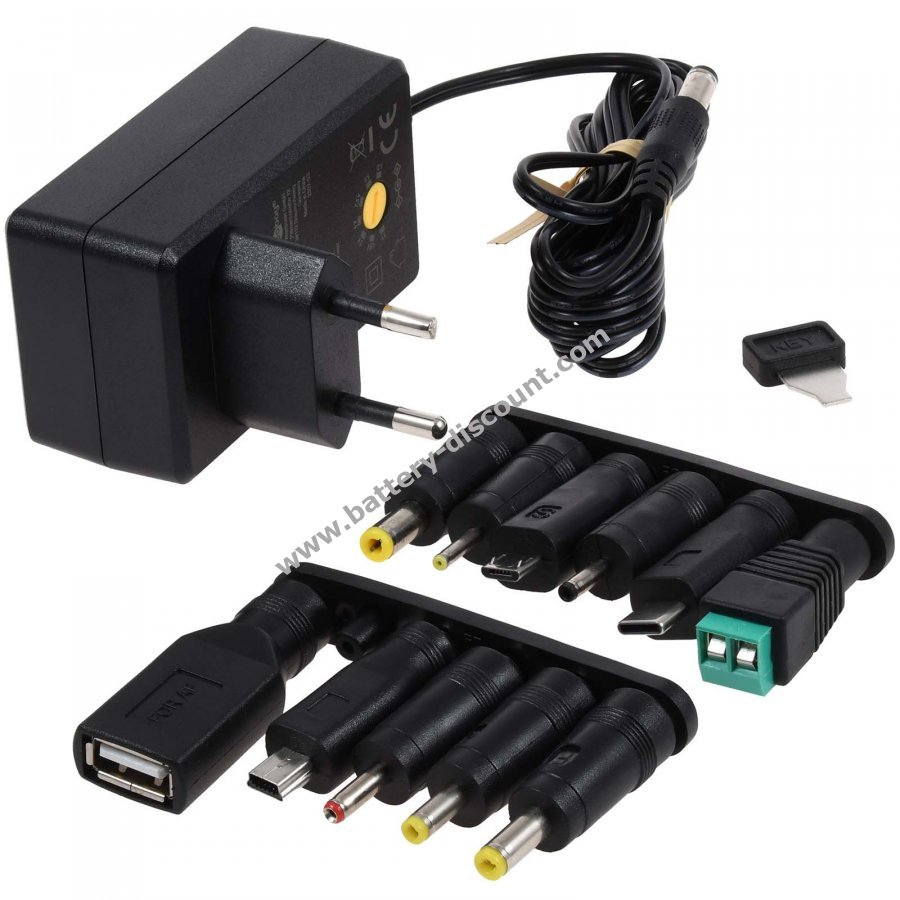

Product details:

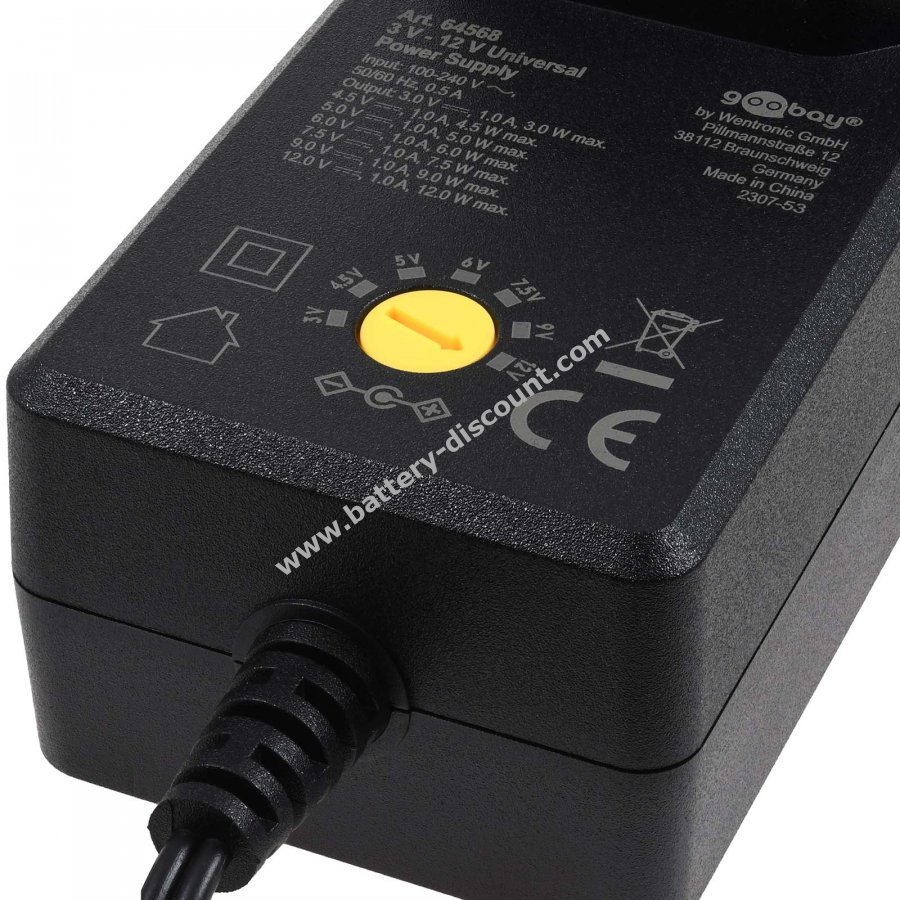

- Variable voltage
- Output voltage can be regulated using the enclosed rotary spanner and enables 3 V/4.5 V/5 V/6 V/7.5 V/9 V/12 V at 1 A
- Universal USB-C™ adapter serves a wide range of new devices and, as a new hardware standard, makes the switching power supply usable in the long term
- Micro-USB and mini-USB power many small devices such as portable radios, battery chargers, Bluetooth speakers or headphones
- incl. permanently installed DC plug 5.5 x 2.1 mm and 6 additional DC adapters: 5.5 x 2.5 mm, 2.5 x 0.7 mm, 3.0 x 1.1 mm, 3.5 x 1.35 mm, 4.0 x 1.7 mm, 4.8 x 1.7 mm

DC adapter:
- 5.5 x 2.1 mm (cable)
- 2.5 x 0.7 mm
- 3.0 x 1.1 mm
- 3.5 x 1x35 mm
- 4.0 x 1.7 mm
- 4.8 x 1.7 mm
- 5.5 x 2.5 mm
USB adapter
- mini-USB
- micro-USB
- USB-CTM
- USB-A

terminal

Technical data
Average operating efficiency
74.6 %
Efficiency at low load (10%)
50.8 %
Power consumption at no load
0.09 W
Power output
Max. power
12 W

Output voltage
- 3.0 V max. 1.0 A (3.0 W) DC

- 4.5 V max. 1.0 A (4.5 W) DC

- 5.0 V max. 1.0 A (5.0 W) DC

- 6.0 V max. 1.0 A (6.0 W) DC

- 7.5 V max. 1.0 A (7.5 W) DC

- 9.0 V max. 1.0 A (9.0 W) DC

- 12.0 V max. 1.0 A (12.0 W) DC

Device connections
Input, voltage range
100 - 240 (AC) V

Input, type
Euro plug (type C, CEE 7/16) x in

Output, max. current (DC)
1 A
Output, max. current (DC)
1.0 A
Input current (AC)
0.5 A
