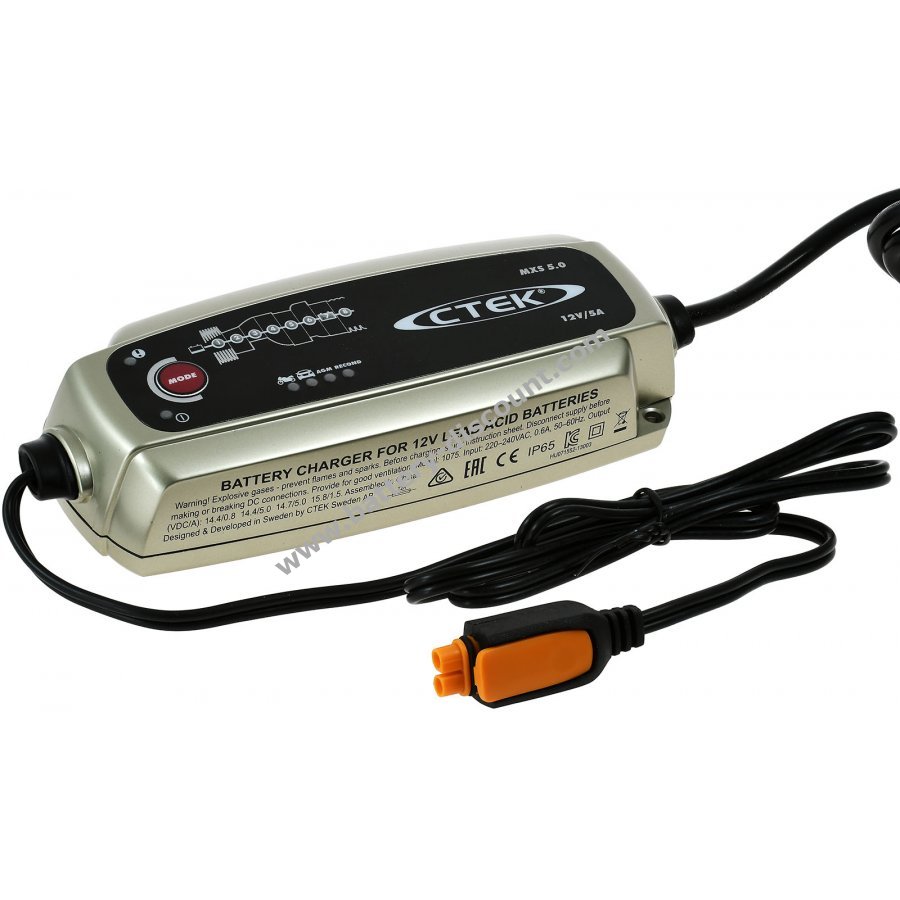

The MXS 5.0 is a sophisticated microprocessor-controlled battery charger with built-in automatic temperature compensation that offers unrivalled performance when charging lead-acid batteries from 1.2 Ah up to 110 Ah.
The MXS 5.0 solves a range of battery problems and is an ideal charger for the discerning user. The MXS 5.0 features include battery condition diagnostics to determine if the battery can accept and hold a charge, a patented automatic desulphation step and a special reconditioning step that restores batteries that have developed acid stratification and deeply discharged batteries. The AGM option is ideal for maximising the performance and service life of most start-stop batteries.
The in-built temperature compensation guarantees ideal charging performance even under extreme conditions. The patented float/pulse trickle charge makes the MXS 5.0 ideal for long-term maintenance. The entire process of battery testing, charging and maintenance can be easily tracked on the clear LED display.

The MXS 5.0 is a fully automatic 12 V charger based on the "connect and forget" principle with 8 charging stages; it offers selectable SMALL BATTERY and NORMAL BATTERY programmes. The RECOND and AGM options work independently or together in both the SMALL BATTERY and NORMAL BATTERY programmes, giving the user great flexibility. Wide charging range for all lead-acid battery types from 1.2 Ah up to 110 Ah with additional trickle charge capacity up to 160 Ah. Splashproof and dustproof (IP65). The MXS 5.0 is safe and easy to operate, spark-free, reverse polarity protected and short-circuit proof, and protects the vehicle electronics.


Technical data

Volt 12 V
Nominal AC voltage AC 220-240VAC, 50-60Hz
Charging voltage SMALL, NORMAL: 14.4 V, COLD/AGM: 14.7 V, RECOND: 15.8 V
Min. battery voltage 2.0V
Charging current 5A max
Mains current 0.6A effective (at full charging current)
Reverse discharge current <1Ah/month
Ripple Less than 4% of the actual direct current
Ambient temperature -20°C to +50°C, output power is automatically reduced at high
automatically reduced at high temperatures
Charger type 8-stage, fully automatic charging cycle
Battery types All types of 12V lead-acid batteries (wet, maintenance-free, Ca/Ca, AGM and gel)
Battery capacity 1.2 to 110Ah, up to 160Ah for trickle charging
Dimensions 168 x 65 x 38 mm (L x W x H)
Insulation class IP65
Weight 0.6 kg
Temperature compensation Built-in adjustment of the charging voltage to the ambient temperature
